Outstanding Design
• Intuitive user interface
• Low noise in service
• Compact and lightweight body
Wide Range & Expendable Accessories on Demand
• Contact smart IC chip encoding module
• Contactless (RFID) encoding module
• Magnetic stripe card encoding module
• Flipper module
• Ethernet connect module
• High capacity input hopper (400 cards loader)

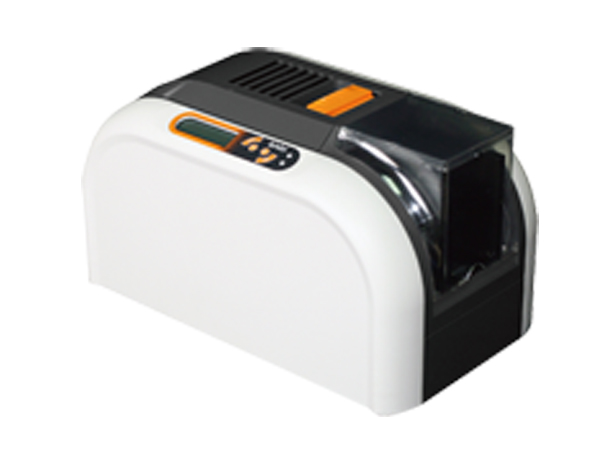

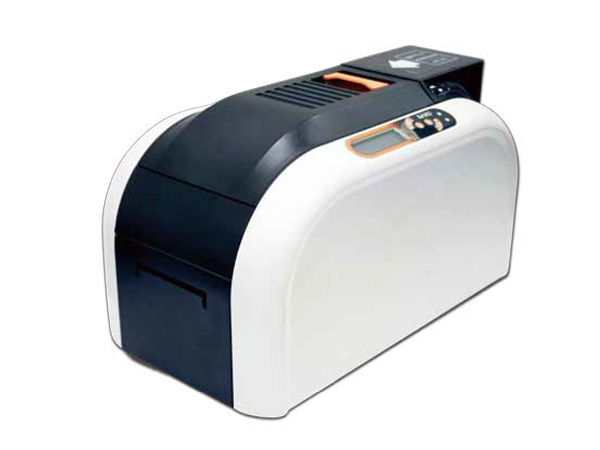

| Model Name : | CS-220e Transparent Card Printer |
| Print Method : | Dye-Sublimation |
| Resolution : | 300 x 300 dpi |
| Print Capability : |
• Edge-to-edge printing • One-sided or dual-sided printing* (*Flipper module required) • Full color (YMCKO) and monochrome printing |
| Printing Size & format : |
• CR-80 (53.98mm x 85.60mm)
• 0.3mm ~1.0mm (10mil ~ 40mil); dual-sided printing workable from 0.5mm to 1.0mm (20mil ~ 40mil)
• 0.3mm = 0.25mm round off to 1st decimal place
|
| Capacity : |
Input : l 100 cards (0.76mm / 30mil)
Output : l 50 cards (0.76mm / 30mil)
|
| Print Speed** : |
Normal card printing:
• Full color printing (YMCKO) up to 180 cards per hour
• Monochrome black printing up to 1400 cards per hour
Transparent card printing:
• Full color printing (YMCKO) up to 140 cards per hour
• Monochrome black printing up to 1100 cards per hour
|
| Display : |
• LCM (Liquid Crystal Monitor)
• Multiple-Language Supported (EN, TN, SN, ES, PO)
|
| Media : |
• Full panel YMCKO 400prints/ roll , 16 rolls in a carton
• 1/2 panel YMCKO 560prints/ roll , 16 rolls in a carton
• Full panel YMCKOK 330prints/roll, 16 rolls in a carton
• Full panel YMCKFoO 165prints/roll, 16 rolls in a carton
• KO 500prints/roll , 16 rolls in a carton
• Monochrome Resin Black (Gold/Sliver/White)1000prints/roll , 16 rolls in a carton
|
| Bundled Software : | CardDésiréé CS (Windows only) |
| Supported OS : |
Windows 2000, XP, Vista, Windows 7 (32/64-bit), Window 8 ( 32/64-bit)
Mac OS 10.6, 10.7, 10.8 or above
|
| Interface : | USB2.0 |
| Dimension : | 197.8mm(W) x 354mm(L) x 204(H)mm |
| Weight : | 4.9kg / 10.8lbs (excluding consumable) |
| Optional Encoding Modules : |
• Contact smart IC chip encoding module
• Contactless (RFID) encoding module
• Magnetic stripe card encoding module
|
| Other Options & Accessories : |
• Flipper module
• High capacity input hopper (400 cards loader)
• Ethernet module
• Clean Kit (Dust arrester excluded)
|
| Buffer Memory : | 64 MB |
